In the production line of square aluminum shell battery cells, the welding of tabs is a crucial link, and ultrasonic welding technology has shown significant advantages in this process. This article will delve into the functions of ultrasonic welding, why it is the preferred process for tab welding, and the stability and advantages of this equipment in actual production.
1. Basic principles of ultrasonic welding
Ultrasonic welding is a joining technology that rapidly heats and melts the workpiece surface through high-frequency vibration. It uses high-frequency sound waves generated by mechanical vibration to form local high temperatures on the contact surface of the workpiece, allowing material molecules to penetrate and fuse with each other, thereby achieving efficient and strong welding. This welding process requires no additional solder and does not involve large-scale temperature increases, so the welding is completed while maintaining the properties of the material itself.
2. Why choose ultrasonic welding?
1) High efficiency and energy saving: Ultrasonic welding is fast and can usually complete the welding process in milliseconds to seconds, greatly reducing production time. At the same time, it has low energy consumption and is suitable for mass production.
2) Non-destructive welding: Since ultrasonic welding does not require heating of the entire workpiece, it avoids material damage caused by high temperatures in traditional welding and can maintain the conductivity and structural integrity of the battery tab material.
3) Environmental protection: Ultrasonic welding is a "cold welding" process that does not require the use of any flux or other chemicals, so it does not produce harmful gases or waste and complies with the environmental protection requirements of modern industry.
3. Why choose ultrasonic welding for the tab part?
In the battery manufacturing process, the tabs serve as an important channel for battery current output, and their welding quality is directly related to the performance and safety of the battery. Choosing ultrasonic welding technology has the following advantages:
1) High welding quality: Ultrasonic welding of tabs can achieve high-precision welding, with strong and uniform solder joints and better conductivity, thus ensuring the stability and safety of the battery.
2) Strong material compatibility: Ultrasonic welding is suitable for the connection of a variety of materials, especially for the welding of conductive materials such as aluminum and copper. The tabs of square aluminum-shell batteries are mostly made of aluminum, so this technology is the best choice.
3) Avoid thermal damage: Traditional welding methods require high-temperature operations, which can easily cause thermal damage to the tabs and affect their conductivity. Ultrasonic welding uses heat generated by vibration and friction to complete the welding, avoiding this kind of damage and ensuring the quality and performance of the battery tabs.

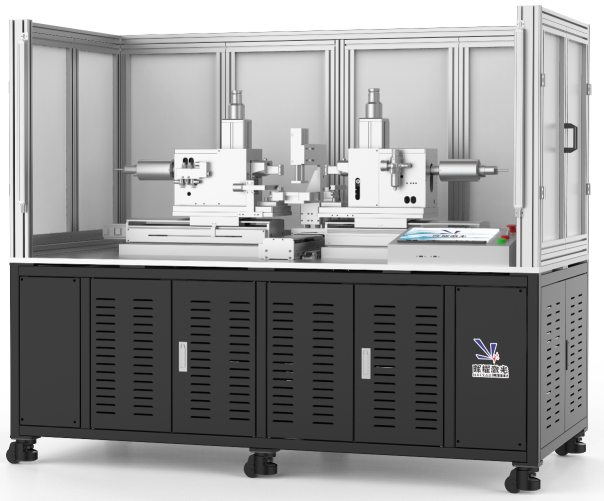

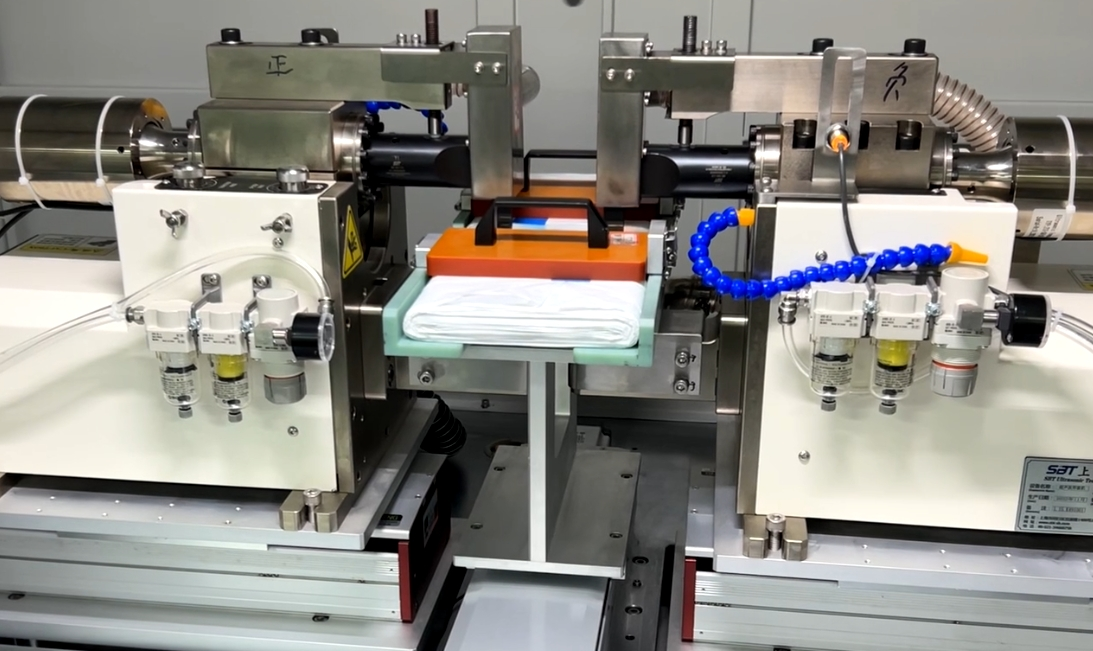

4. Stability and advantages of ultrasonic welding equipment for tabs
1) High equipment stability: Modern ultrasonic welding equipment adopts an advanced automated control system, which can monitor parameters in the welding process (such as vibration frequency, pressure, temperature, etc.) in real time to ensure the consistency and accuracy of welding. In addition, after the equipment is optimized and designed, the stability of long-term operation is improved, greatly reducing the failure rate and maintenance costs.
2) High degree of automation: The current ultrasonic welding equipment can be seamlessly connected with other processes of the battery core production line. The welding process is fully automated, further improving production efficiency and reducing errors in manual operations.
3) Long service life: The core components of ultrasonic welding equipment are highly durable, such as ultrasonic transducers and welding heads, which have undergone strict processing and can withstand long-term high-frequency operation, ensuring the service life and stability of the equipment.
4) Flexible adaptation to various process requirements: Because the equipment supports flexible adjustment of various process parameters, it can adapt to the customized needs of different battery manufacturers, whether it is mass production or small batch customization, it can meet the needs.
5. Summary
In the production line of square aluminum shell battery cells, choosing ultrasonic welding equipment for tabs can not only greatly improve production efficiency, but also ensure the quality and safety of battery products. Its high efficiency, environmental protection and precise welding characteristics make ultrasonic welding an important process technology in the battery industry. The stability and automation of modern ultrasonic welding equipment further save production costs for enterprises and improve market competitiveness.
With the rapid development of the new energy industry, ultrasonic welding equipment will continue to become an indispensable part of the battery core production line, injecting more power and vitality into the development of the industry.
Huiyao Laser Technology Co., Ltd.'s flexible battery cell assembly line can quickly convert and be compatible with various types of square-shell battery cells. The equipment yield rate is ≧99.9% and the failure rate is ≦2%. All production line equipment can be customized according to requirements.
